Source Audio C4 Synth
Browse, Burn, and Play
- Six Preset Positions: Use the C4’s three-position toggle switch and two preset banks to save six easily accessible presets.
- Growing Library of Published Presets: For quick access to a world of great tones, try sampling sounds from a vast collection of published presets created by the Source Audio team and the ever-growing C4 Neuro Community.
- Unprecedented Sound Sculpting Options: The powerful Neuro Desktop Editor (Free download for Mac and Windows) and Neuro Mobile App (iOS and Android) offer maximum sound exploration possibilities. Use Neuro’s modular synthesizer inspired editor to create custom C4 Synth presets that can be burned directly to the pedal, saved to a private cloud based library or shared publically with other members of the Neuro Community.
- Supreme Tracking: If tracking matters to you (and it should), you will be amazed by the lightning quick, imperceptible latency of the C4 Synth.
- 128 MIDI Accessible Factory Presets – The addition of a third party MIDI controller with USB host provides access to any of the pedal’s 128 Factory presets.

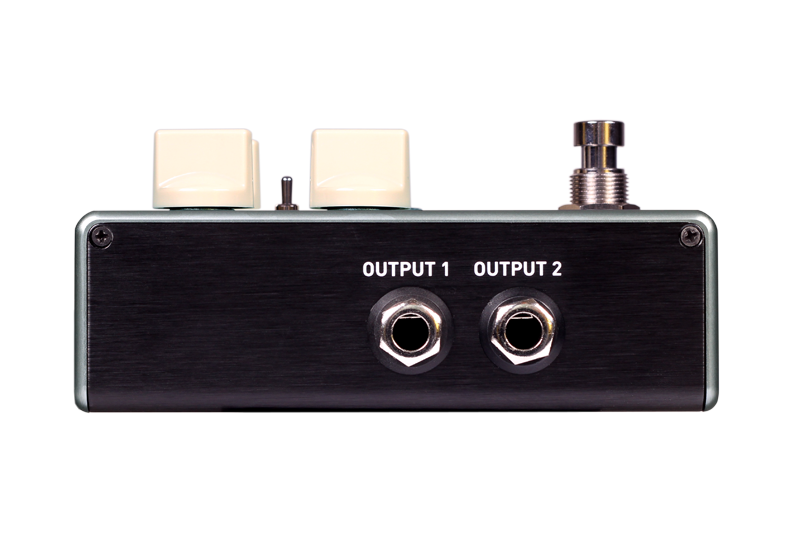

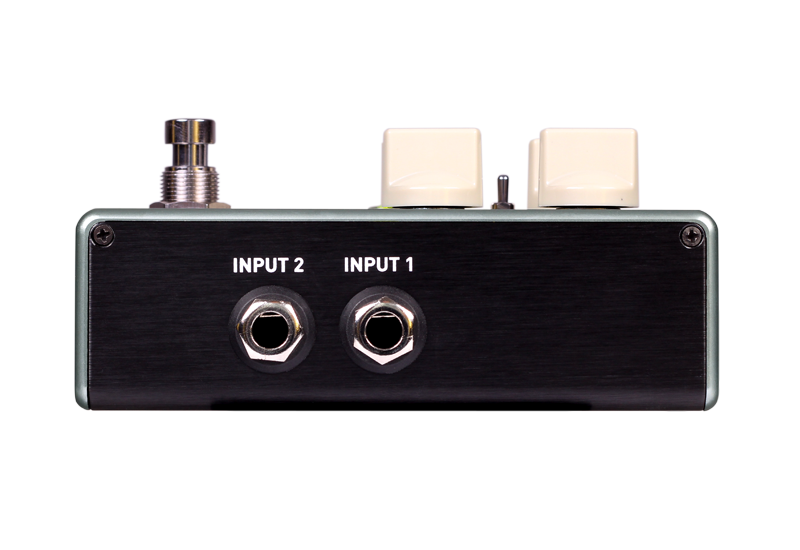

- Stereo Inputs and Outputs: Use the Neuro Editor’s panning controls to route each Voice to any location in a full stereo spread.
- Compact Design – The durable, anodized aluminum housing has a small footprint and sturdy hardware. Dimensions: L: 4.5 in./11.4cm x W: 2.75 in./7cm x H: 2 in./5.1cm (including knobs).
- Universal BypassTM – Select either analog buffered or relay based True Bypass.
- USB Port - Class compliant USB-MIDI allows the C4 to work as a plug-and-play device with recording software running on Mac and Windows recording software or any third party MIDI controller with USB host. The USB port also offers connectivity to the Neuro Desktop Editor providing access to deep editing possibilities and pedal firmware updates.

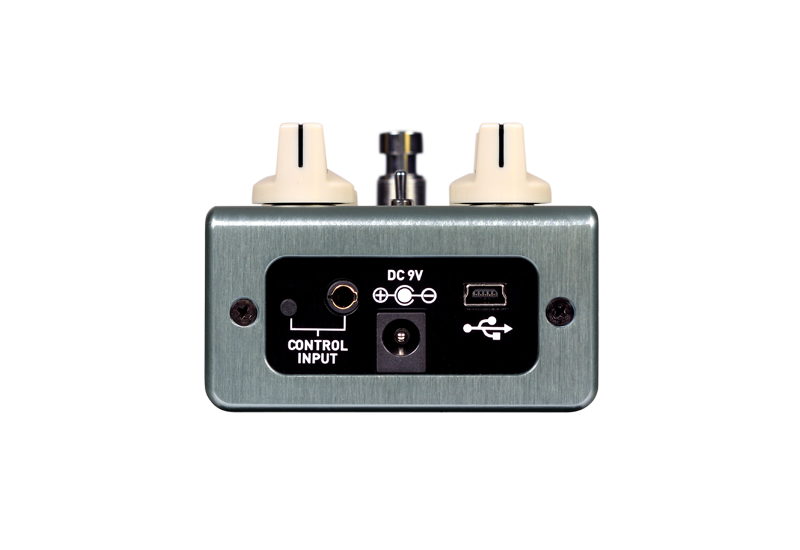

- External Expression and Tap Tempo Control — Use the Control Input jack with the Source Audio Dual Expression Pedal (expression control to multiple parameters) or Tap Switch (adjust LFO rates on the fly).
- Growing Library of Published Presets: For quick and easy access to a world of great tones, try sampling sounds from a vast collection of published presets created by the Source Audio team and the ever-growing C4 Neuro Community.
- Unprecedented Sound Sculpting Options: The Neuro Desktop offers maximum sound exploration possibilities. Use Neuro’s modular synthesizer inspired editor to create custom C4 Synth presets that can be burned directly to the pedal, saved to a private cloud based library or published and shared the entire Neuro Community.
- Four Independent Voices: Mix together any of the C4’s four independent Voices. Assign any of the Voices to an oscillator wave shape, monophonic or polyphonic pitch shifter, intelligent harmonizer, sequencers, or dry signal to distortion, tremolo, and filter effects.
- Three Types of Oscillators: Mix and match any of the C4’s three oscillator wave shapes for pure synthesizer tones. Choose from sine, square, and saw shaped oscillators.
- Eleven Envelope Followers: Select from a comprehensive collection of envelope followers with adjustable attack/decay as well as ADSR triggering envelopes.
- 25 Filter Effects: Choose from a huge collection of filters, controllable with an envelope follower or independently modulating LFOs.
- 14 Different LFO Wave Shapes: Use LFO (Low Frequency Oscillators) to control the modulation of filter, vibrato, or tremolo effects. Choose from eight different LFO wave shapes, including sine, square, sample and hold, saw tooth, and more.
- Two Programmable 16-Step Sequencers: Run two simultaneous sequencer patterns. Choose from several preprogrammed sequencer patterns or create custom patterns.
- USB Connection – Use the pedal’s mini USB port to connect the C4 to the Neuro Desktop Editor, which can be used to edit presets or download the latest pedal firmware.
The C4 Synth responds to MIDI Program Change (PC) and Continuous Controller (CC) messages via its mini USB port. The USB port handles communication between the C4 and digital audio workstations (DAW) on Mac and Windows machines as well as external MIDI controllers with USB host support (we recommend the DMC.micro from Disaster Area Designs)
- Preset Saving – Save up to 128 effect presets.
- MIDI Mapping – Use the Neuro Desktop Editor to easily map MIDI Continuous Controller (CC) messages to a comprehensive list of parameters.
- Preset Recall - Use MIDI CC numbers 103 & 104 to recall any of the C4's 128 MIDI accessible presets.
- MIDI Clock – Sync the C4's LFO rate with external MIDI clock messages.
- The Neuro Hub - Connect the C4 to the Neuro Hub and use MIDI CC messages to control parameters or recall presets.
- Includes 9v DC power supply (300mA / Negative Tip)
- Includes 1/8” to 1/4” cable for Neuro Mobile App connection.
- Power Consumption — 165mA
- USB port — Connects to Mac or Windows PC for firmware updates and the forthcoming in-depth effects editing software.
- Brushed anodized aluminum housing.
- Dimensions: L: 4.5 in./11.4cm x W: 2.75 in./7cm x H: 2 in./5.1cm (including knobs)
Dive into the C4 Neuro Sound Editor - it's good for the soul.
