Solace Cables Patch Cable Mogami W2314 | SP400-SP400
- Smallest cables in the WORLD!
- Extra space on pedalboard -> Put more pedals!
- Hand-soldered in Singapore by Singapore guitar Tech Jacob Lai!
- Customize to ANY length you need! Available in Steel or Black!
Every board is unique and requires specific lengths of right angled plug patch cables. Thus all cables are made-to-order to your the specifications that you need. Do give us 1-2 working days to get your order up!
To place an order, simply input the lengths that you require (highly advisable to add an inch more to every cable).
Orders below $100 will be charged $5 for shipping due to credit card transaction fees. Orders over $100 enjoy free shipping islandwide!
Feel free to hit us up if you've any questions!
DESIGNED BY KMMK SOLUTIONS

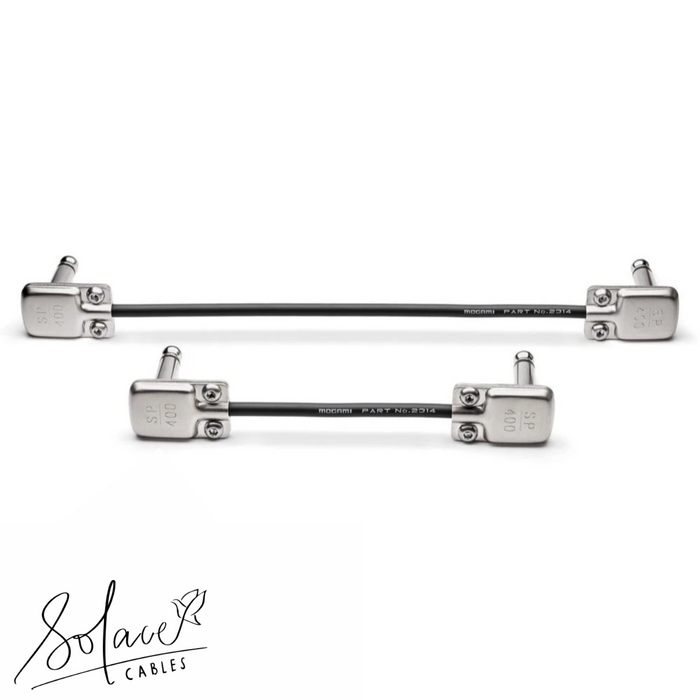

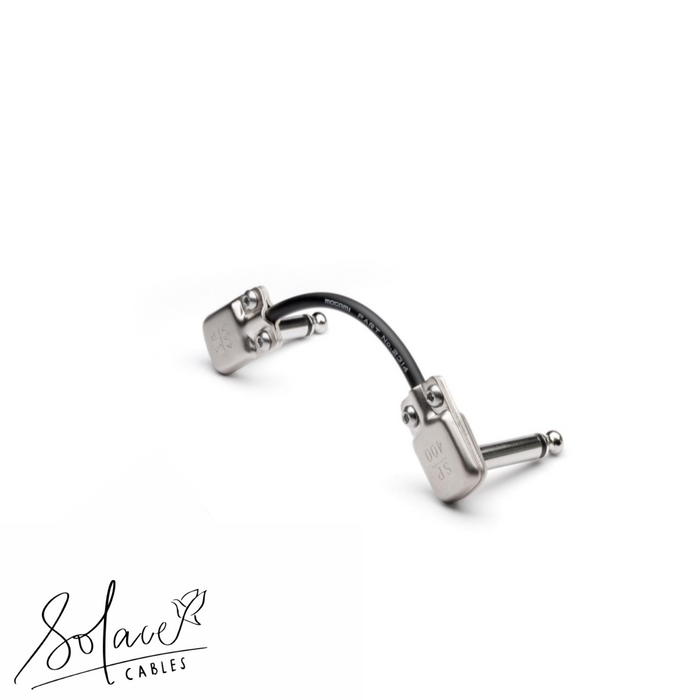

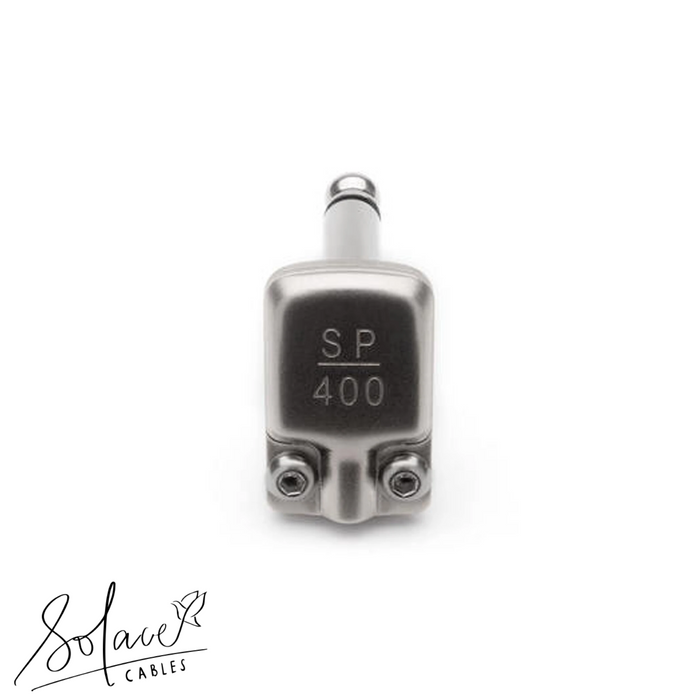

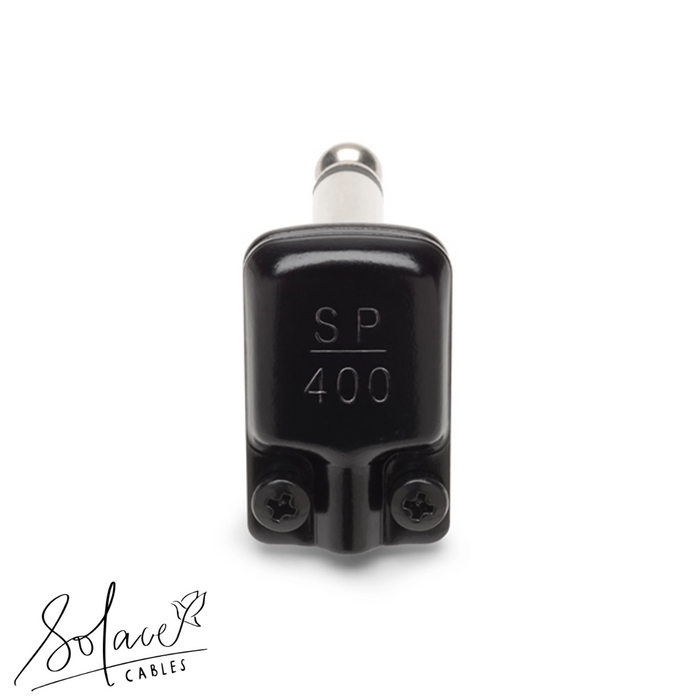

SquarePlug SP400 [SP500] is what we believe the 1/4” ‘pancake-type’ connector introduced by Switchcraft some 50 years ago under the designation 228, should look like in 2017. With today’s trend towards more compact, all-in-one integrated systems, a smaller and more functional version of the Switchcraft 228 was needed. We took on the challenge of redesigning the S228 in every detail and we came up with the smallest solder type 1/4” right angle connector created to date. SP400 [SP500] is not only thinner than its counterparts, soldered and solderless alike, but is also narrower and shorter, which makes it the only soldered connector on the market to work with many switchers/controllers with close jack spacing.

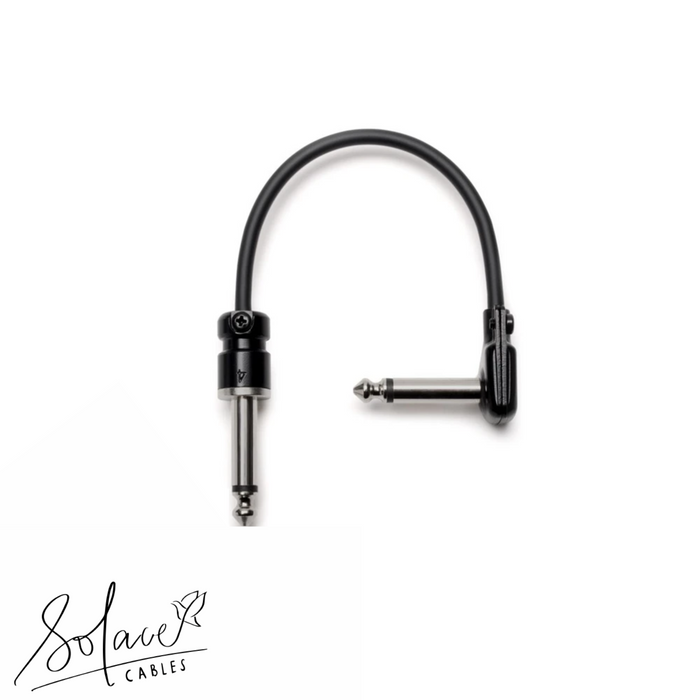

SquarePlug SPS4 [SPS5]: the smallest soldered 1/4″ straight connector with strain relief created to date! SPS4 [SPS5] has been designed with the same idea in mind as for the SP400  series, that is, create the least obtrusive, yet full-featured straight 1/4″ jack. A two-screw cable clamping solution sets the SPS4 [SPS5] apart from its counterparts, as it yields a much more effective strain relief action compared to what the traditional cable clamping way provides. Those screws, when replaced by a set of optional anodized screws (scroll down], provide a unique and innovative mean to trace/ID audio cables whether they’re terminated by the SP400/500’s, SPS4/5’s or both.
→ Super flexible, small diameter [4mm / 0.155"] Mogami 2314 cable for precise cable routing
→ Low noise, low capacitance [33pF/ft / 110pF/m, at 1kHz, 20degC; rating: 60degC, 30V] for excellent signal transfer
→ Ultra–low–profile connector [measures only 8.3mm / 0.326" x 17mm / 0.67" x 28mm / 1.10"] for highest packing density
→ Serviceable, all–metal plug designed to snug–fit smaller diameter cables for optimum strain relief and improved EMI protection
→ Insulation sheet to prevent hot and ground signals from shorting
SP400 is compatible with the following popular switching systems & more: VoodooLab Pedal Switcher, PX8, PX8 Plus, HEX | RJM PBC, Mini Effect Gizmo | MusicomLab 6M, 62M, 8L, MKIV, MKV | Providence Audio PEC-4V, PEC-2 | IdeaBench Switcheroo | Carl Martin Octaswitch, Octaswitch mkii | Vinteck V8 | Cusack Music: PBT9, PBT6 [Not Compatible with The GigRig G2 and Boss ES5/8
