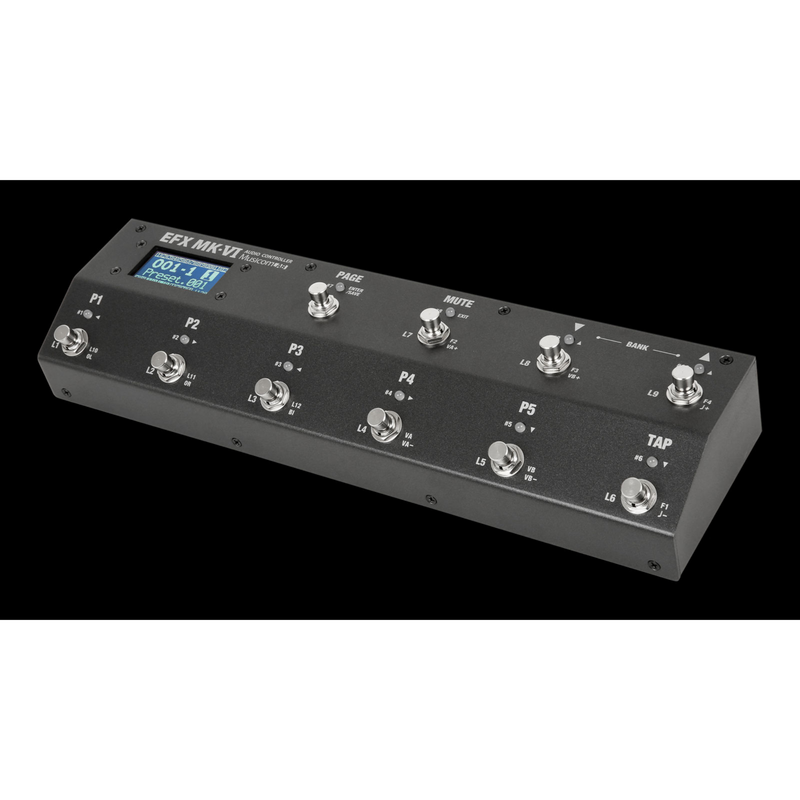

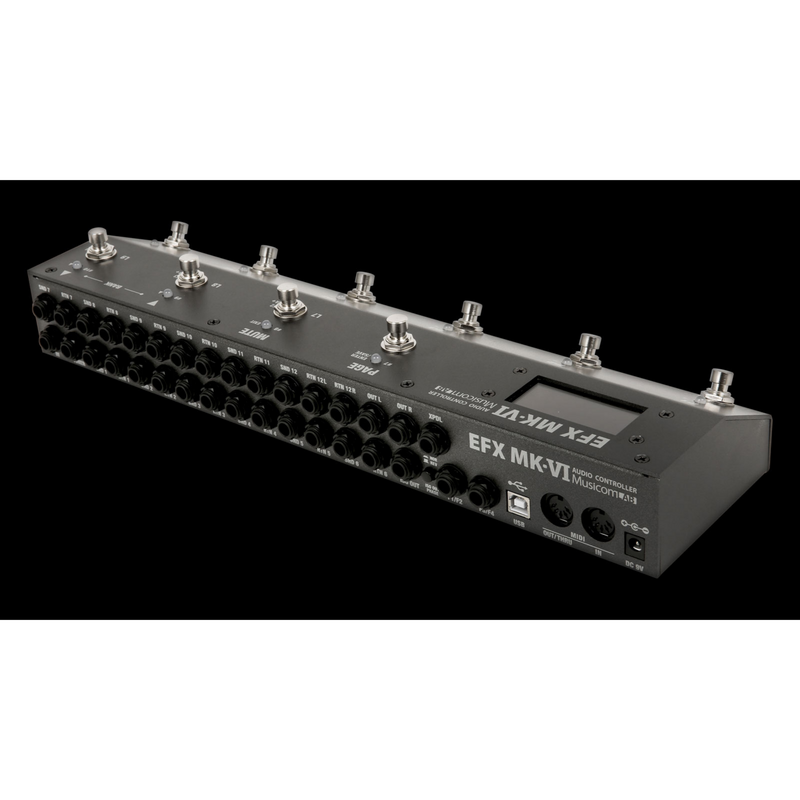

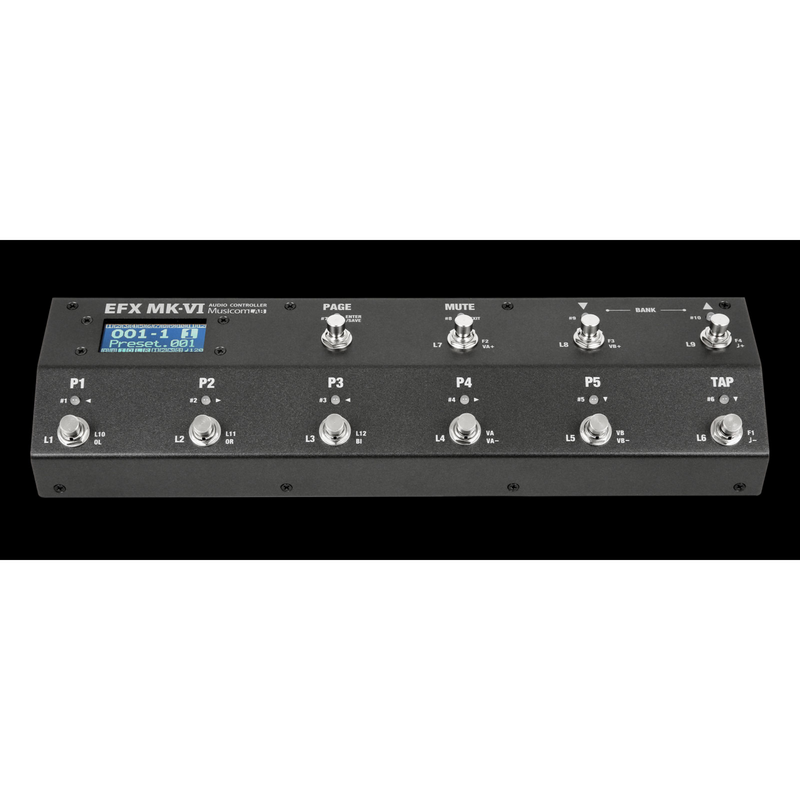

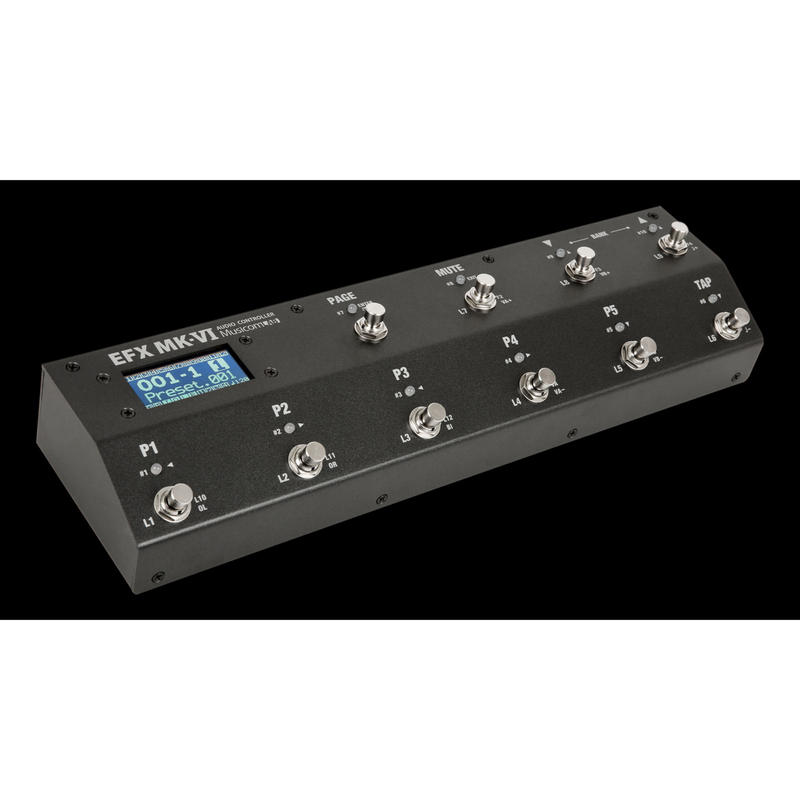

Musicomlab EFX MK VI

11 mono loops and 1 mono-send/stereo-return loop

Programmable loop order each preset

3 Buffers, Input, Output and buffer in loop6

2 internal Volume-controllers

(Carry-Over routing or Volume Conrol)

901 preset memory locations

(180 banks of 5 presets, plus a Global Preset)

Create up to 900 songs

Organized the 900 songs in to 64 sets of 120 songs

4 function switches via 2 TRS jacks

(Latched / Momentary / Tempo Sync)

Flexible switch setting

Mute and Click-Less functions

ISO OUT to prevent ground noist and phase issue

16 MIDI messages (PC, CC, Note or SysEx) each preset

8 MIDI messages (PC, CC, Note or SysEx) each switch

8 Audio actions each IA switch

MIDI Time Clock or Alaog Tempo out for TAP-TEMPO

One expression pedal or 2 foot-switchport port (XPDL)

Graphic LCD for to show a lot of information

Easily copy presets, banks, songs and sets

Easily name presets, songs, sets, pages and switches

Heavy-duty footswitches

Powered by 9VDC(center negative) 250mA

Dimensions : 388(W) x 110(D) x 68(H) mm

15.3(W) x 4.3(D) x 2.7(H) inches

Weight : 1,400 g / 3.1 lbs

Manual

EFX MK-VI Manual (English, version 1.0x)

EFX MK-VI Manual (Korean, version 1.0x)

Latest Firmware / Firmware Loader
