Jet Pedals Revelation Reverb V2.0 (OLD)

Out of Production
Sold out
Original price $0.00 - Original price $0.00
Original price
$0.00
$0.00 - $0.00
Current price $0.00

REPLACED BY THE NEW REVELATION REVERB

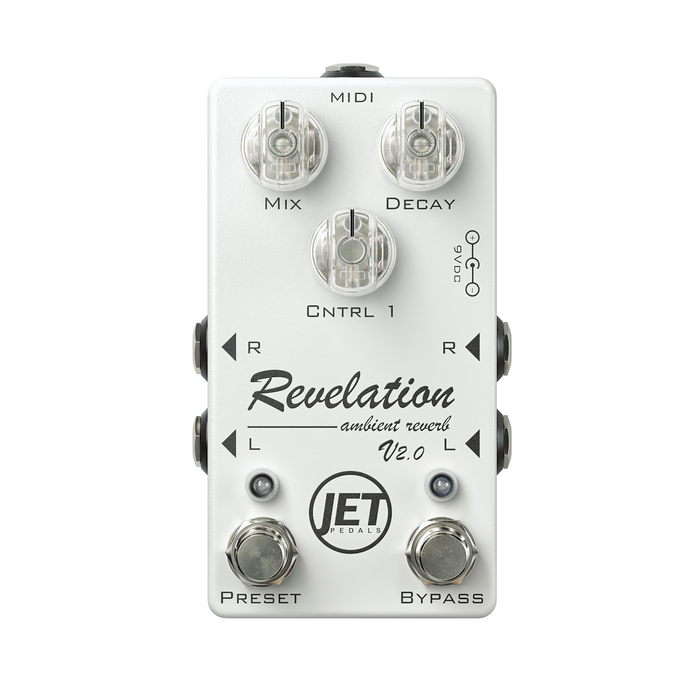

Revelation Reverb V2.0

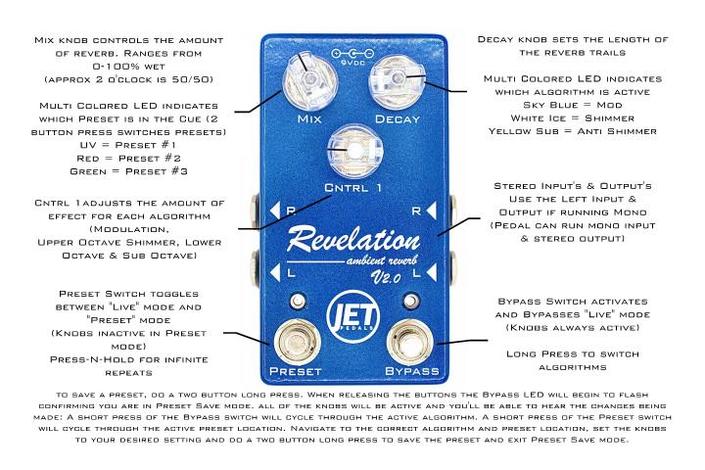

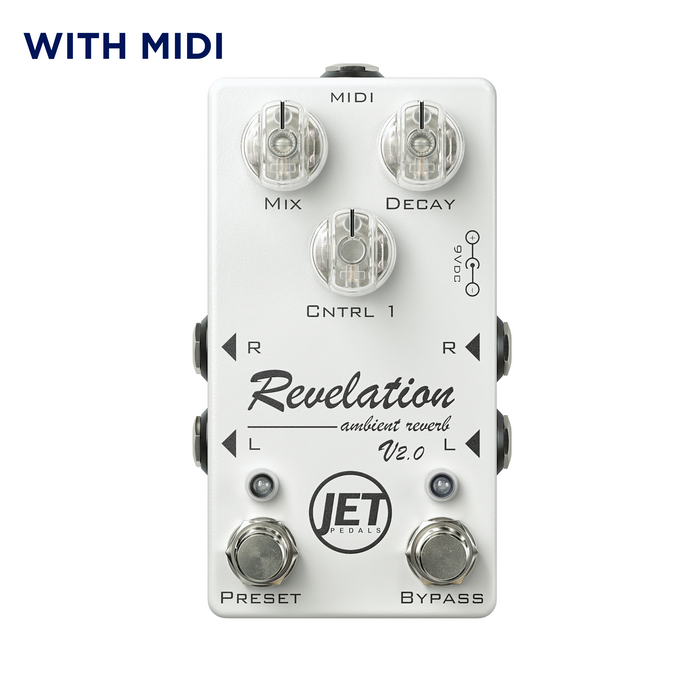

The Revelation V2.0 builds on the ever popular Revelation Reverb. Upgrades include true stereo in's & out's, three user selectable algorithms, three user selectable presets, soft click bypass switching, multi-colored LED's showing preset and algorithm status, & press-n-hold for infinite bloom decay. Now available with full Midi integration, control every switch, knob, algorithm, preset, etc. Now you can have access to unlimited presets with the use of a smart Midi controller that is capable of sending multiple simultaneous Midi messages, or with our revolutionary CC Snapshot feature you can save 125 on-board presets!

Algorithms:

  • Cyan (Sky Blue) - Our Mod algorithm creates deep lush modulated hall type reverbs. Used to create heavenly pads under your base signal or crank the decay up for out of this world swells.

  • White (Ice) - Our Shimmer algorithm is also based on a warmer hall type reverb but it also creates an upper octave that is feed into the reverb trails creating a warm but bright upper octave used to help create pads that cut through the mix.
  • Yellow (Sub) - Our sub algorithm is most commonly known as "Anti-Shimmer". Again we use our warm hall reverb for the base but you can blend in a lower octave and also a sub-octave simultaneously. Use judiciously as you crank up the lower octaves you are entering into a completely different sound spectrum! Note the Mix & Cntrl 1 knobs both work interactively, for best results usually a higher Mix will result in lower Cntrl1 settings.

Features:

  • Stereo In's & Out's
  • 3 Selectable Algorithms
  • 3 Selectable Presets (knobs not active in preset mode)
  • Any Algorithm Can Be Saved to Any Preset Location
  • Live Mode (knobs always active)
  • Quick access between Live Mode & Presets
  • Multi-Colored LED's Showing the Status of Each Preset & Algorithm
  • Trails Always Available When Bypassing the Revelation V2.0
  • Trails Available when switching between Live Mode & Presets (only when staying within the same algorithm)
  • Press and Hold the Preset Switch for Infinite Decay
  • Soft Click Bypass Switches
  • 0-100% Wet Mix
  • Over 1 Minute of Decay
  • Power via 9v (Negative Tip) Power Supply (pwr supply not included)
    • *Requires 200ma or larger power supply (anything less will result in performance issues)
  • Dimensions: 4.82” x 2.62” x 1.425”
