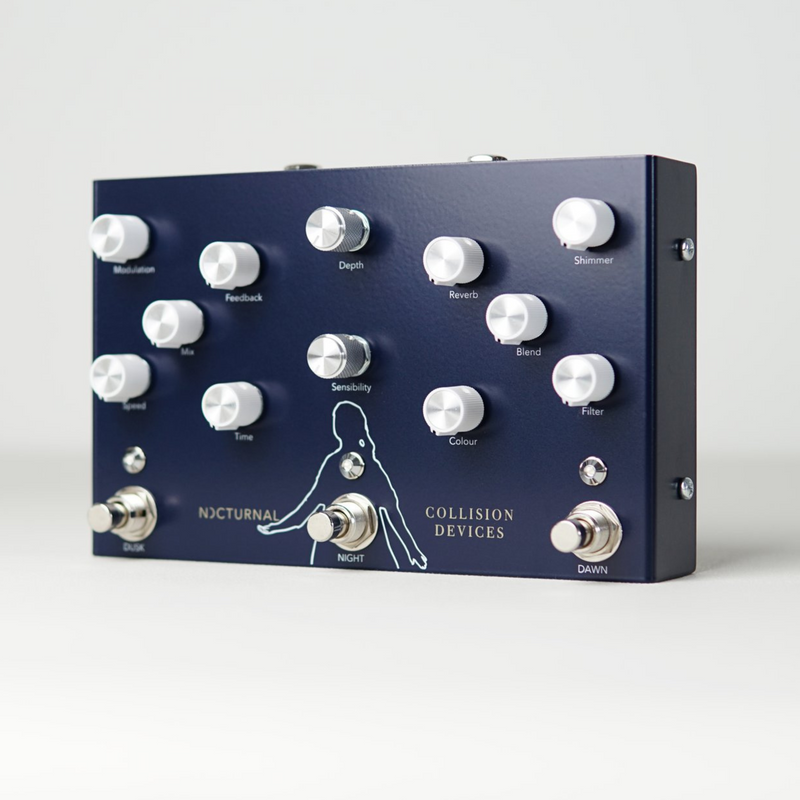

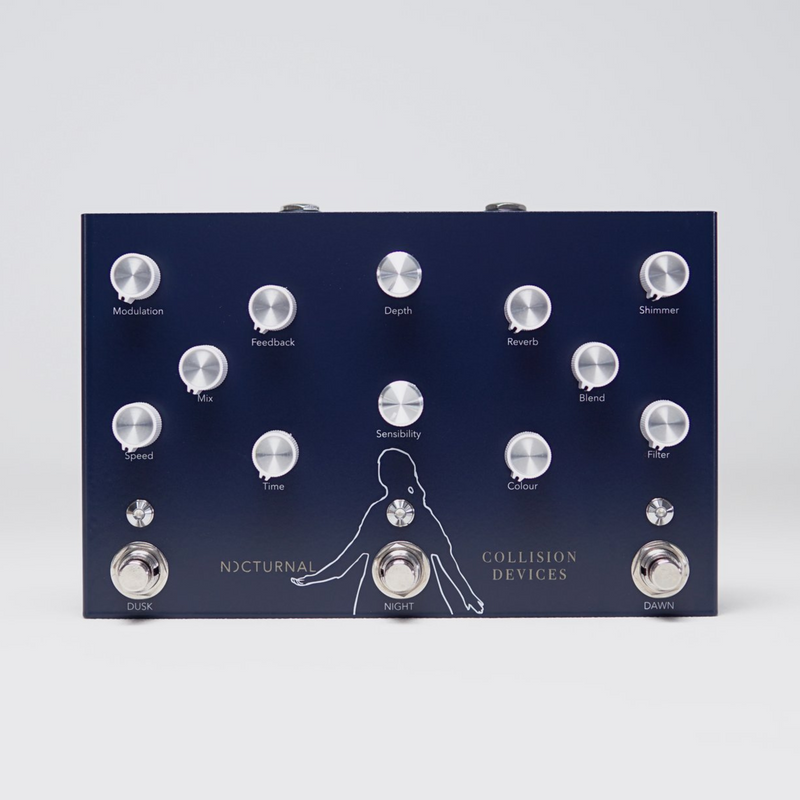

[NOS] Collision Devices Nocturnal Shimmer, Tremolo, Delay

• Maximum current draw

250 mA

• Imput Impedance

1 MOhm

• Size

119 x 116 x 56mm

• The use of an isolated power supply is recommended for powering all Collision devices Pedals.

• Power supply not included.

• The pedal is true bypass

• Voltage

+9V DC (négative center)

• Output Impedance

  1 0 KOhm

• Weight

  700gr

Modulated Delay

Warmed and inspirational delay based on a tape delay circuit.

Settings :

Mix : Controls the mix between Full Dry or 50% Dry / 50% Wet

Time : Time between each repetition. From a few ms to 1 second. Signal quality turns to Lo-Fi when it’s pushed to long repeats.

Feedback : Number of repetitions. Able to self oscillate very easily when the knob is around 7.5.

Modulation : Amount of modulation in the delay repetitions. Create a sort of old tape effect

Speed : Modulation’s frequency from 0.1 to 20 Hz.

Dynamic Tremolo

Turn a huge amount of shimmer and reverb into it to make it oscillate faster.

Settings :

Sens : Sensibility, turn it clockwise to make the tremolo more sensitive to your attack

Depth : Controls the tremolo’s volume

Shimmer

Create bright soundscapes and loose the notion of time until the sunrise.

Settings :

Blend : Controls the amount of Dry/Wet signal. You can have a full Wet reverb.

Reverb : Reverberation time. Max 15 sec.

Shimmer : Makes the reverb shimmer

Filter : Digital filter. Low pass. Lets you make the shimmer darker or more shiny

Colour : Bandpass active and analog filter around 3.3 kHz. Controls the Q of the filter.
