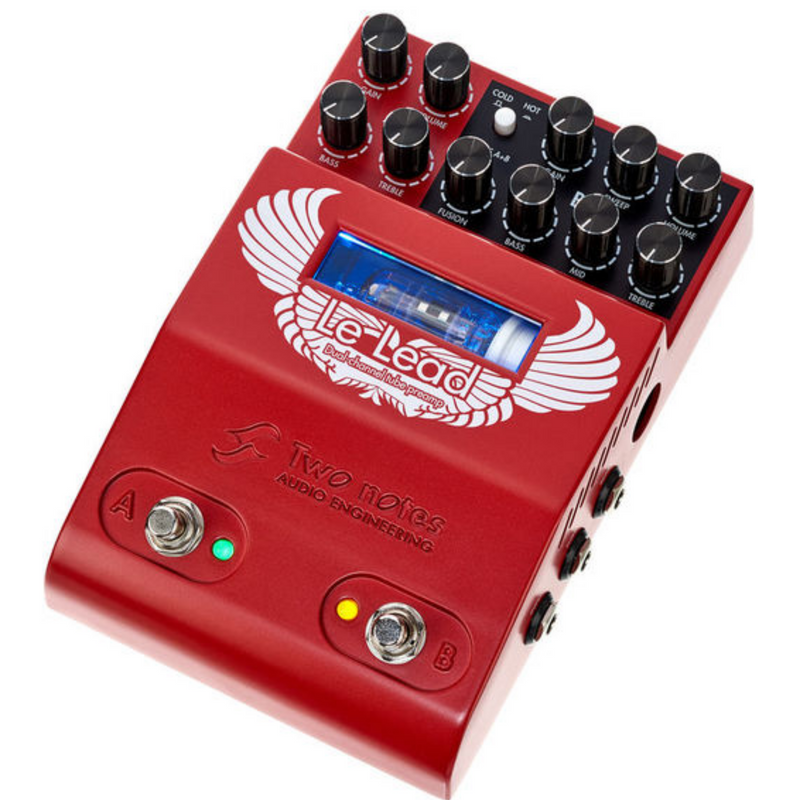

Two Notes Le Lead

Out of Production
Sold out
Original price $0.00 - Original price $0.00
Original price
$0.00
$0.00 - $0.00
Current price $0.00

THIS ITEM IS NO LONGER IN PRODUCTION. WE'RE LEAVING THE LISTING HERE FOR DOCUMENTATION PURPOSES. IT HAS BEEN REPLACED WITH TWO NOTES REVOLT GUITAR AMP SIM

Le Lead’s Channel A shines on the fusion of a clean to slight crunch tone of a perfect melody. Kicking in Channel B unleashes the fury of a super tight modern high gain amp, enhanced with the powerful mid sweep Eq. Hot Fusion takes it all over the top; huge gain, sustain and with the combined EQ’s, everything from metal to all out fuzz at your fingertips. Will you be able to master its strength?

The story

From the moment we launched the Torpedo C.A.B. in 2012, we believed it was possible to build a high quality pedalboard to entirely replace a conventional tube amplifier system: the complete floor rig. Even with an almost limitless choice of available guitar effects, we always felt that finding a very good preamplifier in a pedal format was challenging. This is why Two notes is proud to premier its line of tube preamplifiers: Le Clean, Le Crunch, Le Lead and Le Bass. And with the Torpedo C.A.B. M now available, you can create even more powerful amp-less rigs.

The concept

The selection of a preamplifier is the core of your overall tone and thus requires the greatest attention. When building a complete floor rig, only the very best will make the cut. The Two notes preamplifiers are a True High Voltage Design running internally at 200 volts to preserve the interaction between you and your guitar while working perfectly with your other effect pedals. Each of the four different versions deliver the unique tube warmth, dynamics, and the musical compression from the amps we know and love, now in a more convenient pedal package. And, of course, you can use them as an elaborate tube overdrive, in front of your favorite amplifier!

Two channels plus Fusion mode

The A and B channels are totally independent, each with their own voicing and eq section: Bass and Treble on A, Bass, Mid with Mid Sweep and Treble for B. On Channel A you will find a lower gain tube stage with a pre-gain EQ using a more vintage design approach, while Channel B offers more gain and a very powerful post-EQ (with mid sweep). The exclusive Fusion modes open new horizons.
Cold Fusion
In “Cold Fusion”, the two channels are in parallel, meaning you can blend the cleaner sound from A and your more distorted sound in B to gain clarity and articulation.

Hot Fusion
In “Hot Fusion”, A and B are cascaded, meaning A can be used as a boost for B with both A and B EQ’s available to shape the result.

Switching & Multi-channel mode

Each preamp features 2 channel footswitches, A and B. Simultaneously pressing A and B will activate the Fusion mode. Pressing A, B or A and B will also send a specific Midi Program Change command, that can be used to select a preset on your Midi multi-effects and/or Torpedo C.A.B. . In addition, the preamplifier may respond to a Program Change sent from another Midi device allowing a seamless integration into any pedalboard switching system. Combining several Two notes preamps on your pedalboard makes things really interesting.

Connected via Midi, each preamp will listen to the others. They can be configured in Multi-channel mode: pressing A on preamp 1 will bypass preamp 2, like the channels of an amplifier. Alternately, when this mode is off: traditional on/off switching for all preamps, a preamp can be a boost/overdrive for the one that follows.

High-quality electronic design

Two notes is first and foremost a team of music lovers who are all great admirers of musicians. We are highly qualified engineers, technicians, and musicians, whose purpose is to facilitate the life of guitar and bass players without infringing on their playing habits. Our mission consists in providing them with studio-grade products that are specifically designed for the guitar and bass.

Integrated speaker simulation

This analog speaker simulation is specifically voiced for your Le Preamp Model, and based on our Torpedo simulator. This speaker simulation affects the DI output and the Headphones output.

APPLICATION

Connections

Le Preamp can be used in various configurations: as a traditional preamplifier, it can be connected to a power amplifier and cabinet, or in the Return input (or Power Amp In) of a guitar or bass amplifier. Placed before an amplifier, it acts as a boost, overdrive or distortion pedal. Alone or with the Torpedo C.A.B. M, it can also be an autonomous system, light and small, ready to be directly connected to a mixing board on stage as well as in the studio. By simply plugging your headphones, you can play silently. Connect it to your sound interface for perfect recordings using Wall of Sound.

MIDI

5 basic functions can be accessed through MIDI Program Changes (PC) sent by an external MIDI device :



  • Canal A
  • Canal B
  • Cold Fusion
  • Hot Fusion
  • Bypass

In other words, your Le Preamp can receive a MIDI PC asking for bypass or channel switch. Any MIDI message received will be transmitted to the MIDI output (MIDI Thru function).

When using Le Preamp as a MIDI controller, you will be able to send a MIDI PC to trigger preset changes on another MIDI device, such as a Torpedo C.A.B. or an FX unit.

Le Lead comes with a 16 cabs license for Wall of Sound

Wall of Sound (WoS) is a speaker and miking simulation plugin. A plugin is a software you can load on a track of your sequencer, such as Cubase, Logic, Pro Tools, Reaper, inside your Digital Audio Workstation.
With your Le Preamp, Two notes gives you access to 16 virtual cabinets you can load in our award winning Wall of Sound plugin. With your Le Preamp and WoS you have the best configuration to record amazingly good guitar or bass tones for all your musical projects.

To download your 16 cabinets, register your product on the Two notes Website, download and install the Wall of Sound (WoS) plugin. You will be guided step by step through the process.

Once you have become familiar with the sound and operation of the Wall of Sound plug-in, please feel welcome to explore the in-app Two notes Boutique which will allow you to audition and have the option to purchase additional cabinets.

Tube

Ruby 12AX7AC5 HG

Tone control

A channel : Passive Bass/Treble tonestack
B channel : Passive Bass/Treble tonestack – Active Mid/Sweep control – Gain : -18 to +6 dB – Freq : 300Hz à 1.5kHz

Input / Output

Input : Jack 6.35 mm unbalanced (TS, Tip/Sleeve) – Impedance : 1 MOhms
Return : Jack 6.35mm unbalanced (TS) – Max input level : 17 dBu – Impedance : 2,2 MOhms – Unbuffered, directly connected to Output when active
Output : Jack 6.35 mm unbalanced (TS) – Max output level : 11 dBu – Impedance : 300 Ohms
Thru : Jack 6.35 mm unbalanced (TS) – Unbuffered, directly connected to Inpu
Send : Jack 6.35 mm unbalanced (TS) – Max output level : 11 dBu – Impedance : 300 Ohms
DI Output : XLR, balanced – Impedance : 600 Ohms – Max output level : 10 dBu
Phones : Jack 3.5 mm stereo (TRS, Tip/Ring/Sleeve)

Power

Mains power adaptor DC Jack 2.1mm, negative center
Input voltage : 12V DC
Power consumption : approx. 6W
Current draw : 500mA

Dimensions & weight

Width x depth x height: 124 x 189 x 50 (mm) – 4.88 x 7.44 x 1.97 (in)
Weight : 750g – 1.65 lb
