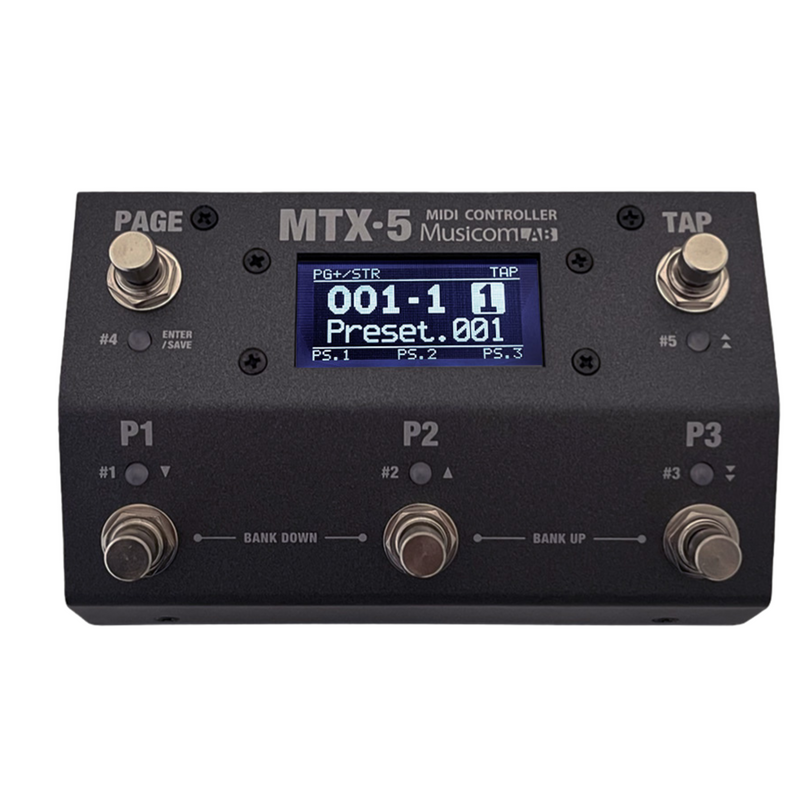

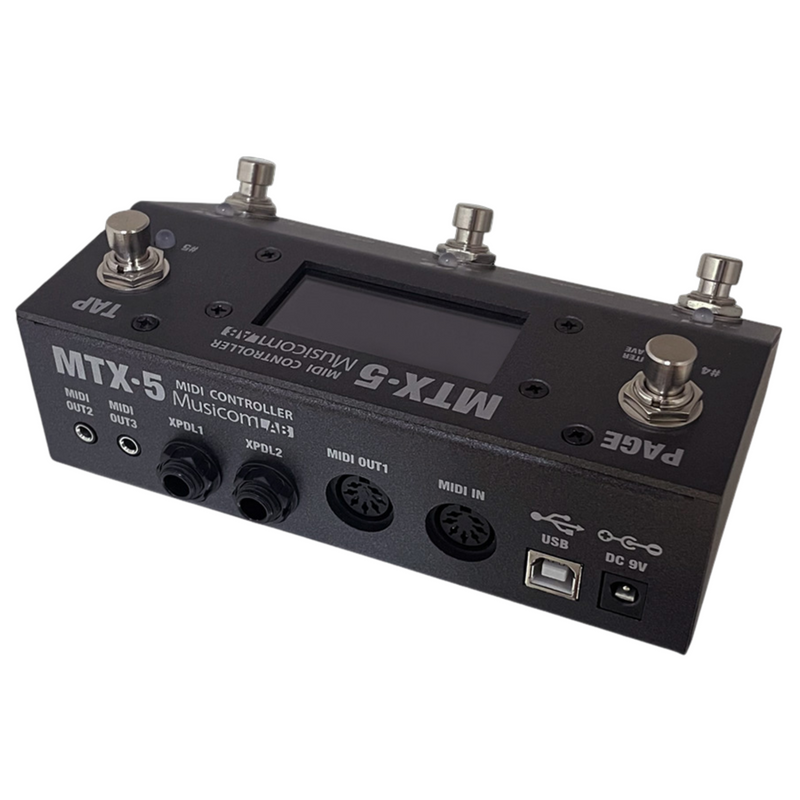

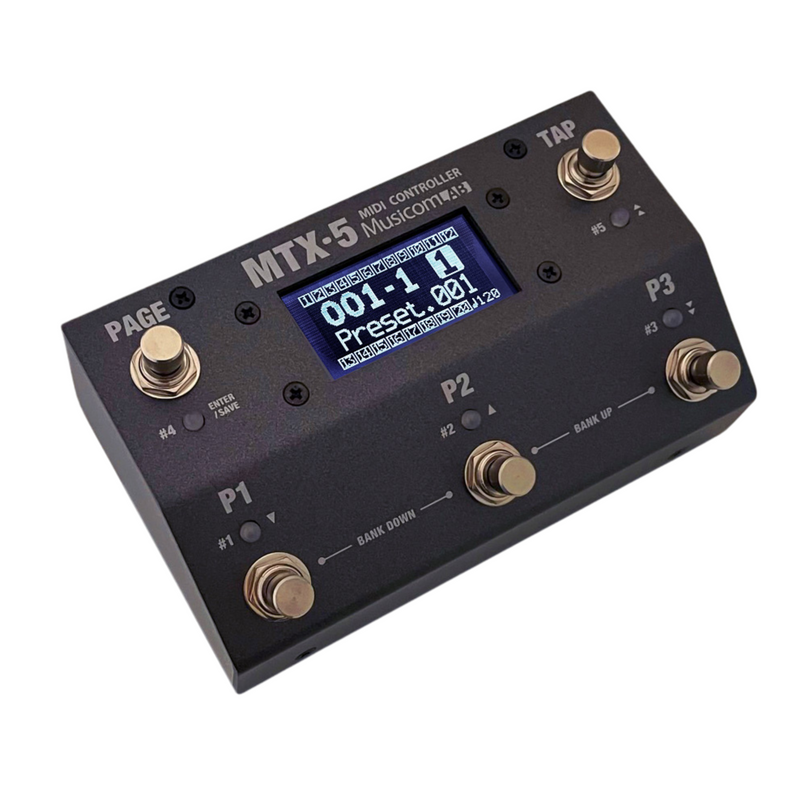

Musicomlab MTX-5 MIDI Controller
Free returns on all eligible orders
You have 14 days to request a return. All sale items are final sale. Read our full Warranty Policies here
871 preset memory locations
(290 banks of 3 presets, plus a Global Preset)
Create up to 870 songs
Organized the 870 songs in to 64 sets of 56 songs
Switches can be assigned to the user's preference.
2 expression pedals or 4 foot-switches (XPDL1/XPDL2)

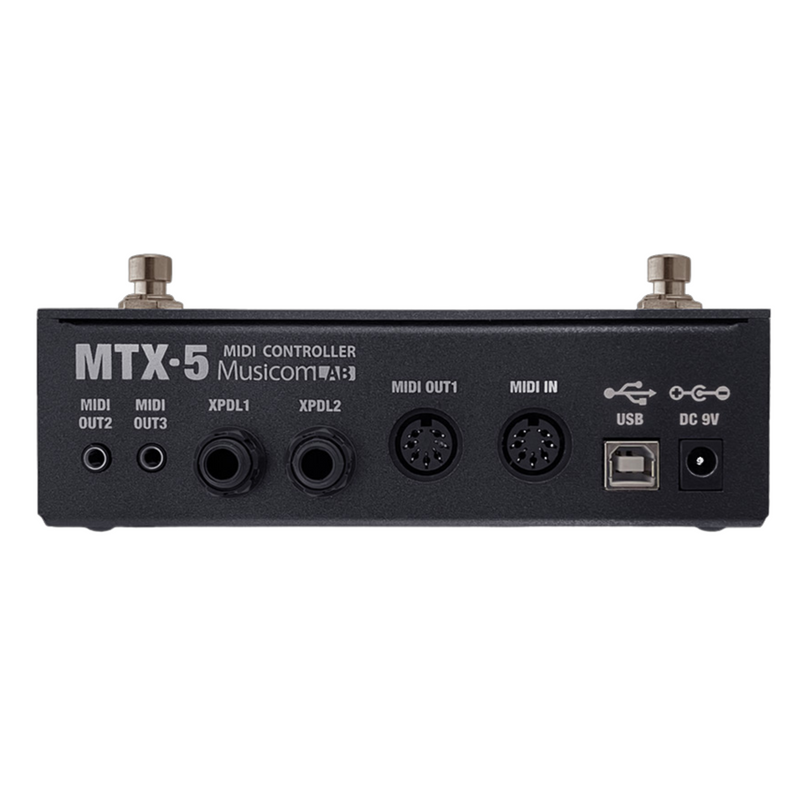

3 MIDI OUT connectors
(one standard MIDI connector and two 1/8 inch phone connectors)
16 MIDI messages (PC, CC, Note or SysEx) each preset
12 MIDI messages (PC, CC, Note or SysEx) each switch
MIDI Time Clock
80 MIDI System Exclusive slots
USB Connection to a PC or MAC
Graphic LCD for to show a lot of information
Easily copy presets, banks, songs and sets
Easily name presets, songs, sets, pages and switches
Heavy-duty footswitches
Powered by 9VDC(center negative) 100mA, phantom or USB
Dimensions : 160(W) x 93(D) x 63(H) mm
6.3(W) x 3.7(D) x 2.5(H) inches
Weight : 550 g / 1.2 lb
Manual
MTX-5 Manual (English, version 2.0x, 01-OCT-2022)
MTX-5 Manual (Korean, version 2.0x, 01-OCT-2022)
Firmware
MTX-5 Firmware v2.00 (01-OCT-2022)
You can update new firmware using the MTX-5 editor.
Editor
MTX-5 Editor v2.00 (for Windows, 01-OCT-2022)
MTX-5 Editor v2.00 (for Mac, 01-OCT-2022)
